Angular Contact Ball Bearings

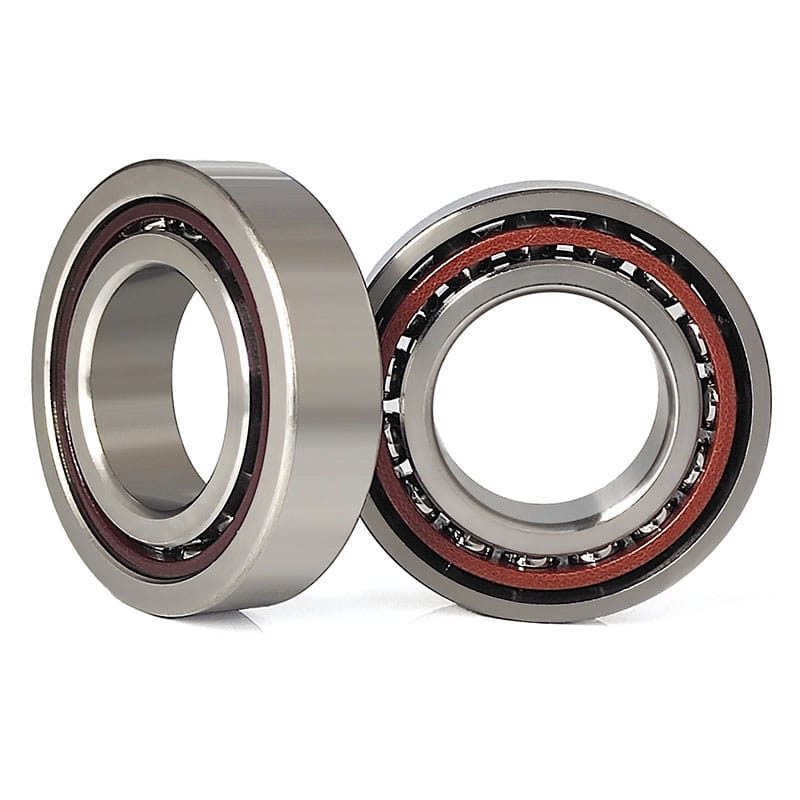

0-角接触球轴承

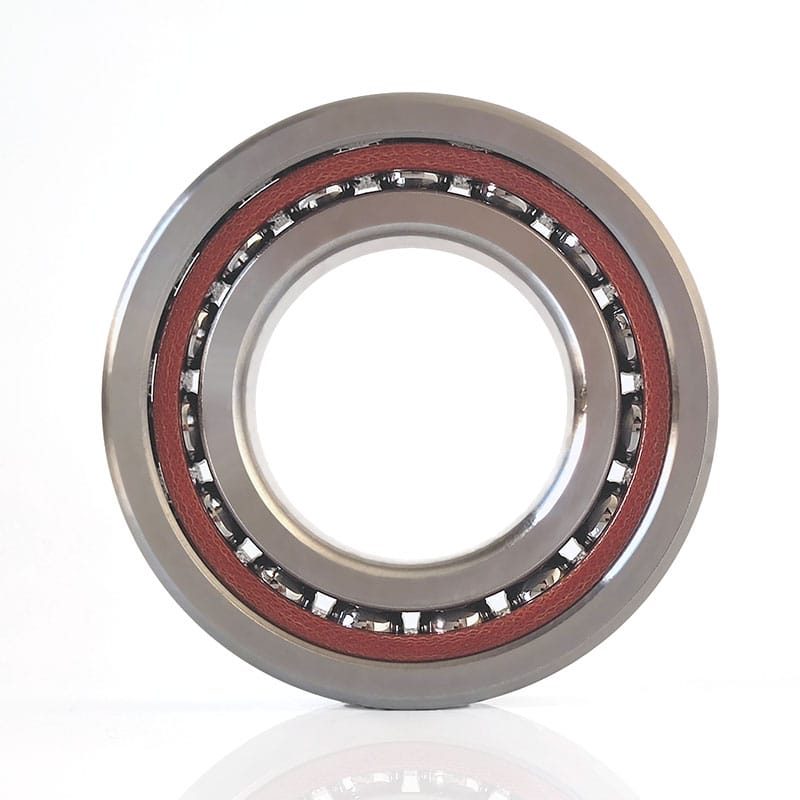

角接触3 拷贝

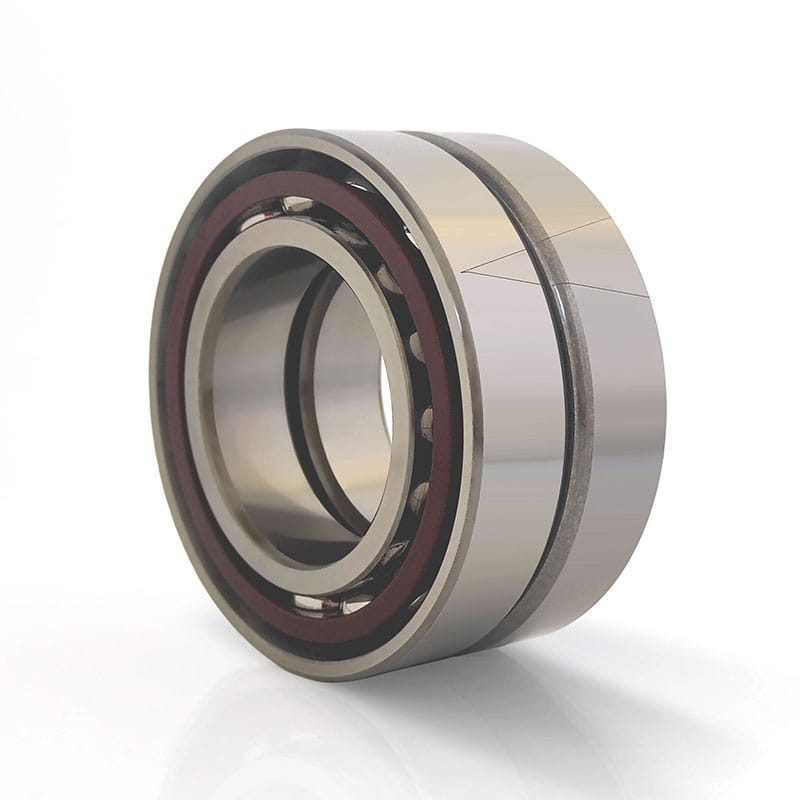

角接触2 拷贝

SUMMARY

Angular contact ball bearings are designed to support both radial and axial loads simultaneously. Due to the contact angle between the raceways and balls, they are ideal for applications requiring high-speed rotation and precision alignment. These bearings are commonly used in machine tools, motors, pumps, and gearboxes. Our products are available in single-row and double-row configurations, ensuring stable performance and extended service life under demanding conditions.

SERIES

· Single ROW: 7000 series, 7200 series, 7300 series, 7400 series
· Double Row: 3200 series, 3300 series

· Custom contact angle available: 15°, 25°, 30°, 40°

……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.

CONTACT US
Model NO.Dimensions（mm）
dDB
700010268
700112288
700215329
7003173510
7004204212
7005254712
7006305513
7007356214
7008406815
7009457516
7010508016
7011559018
7012609518
70136510018
70147011020
70157511520
70168012522
70178513022
70189014024
70199514524
702010015024
702110516026
702211017028
702412018028
702613020033
702814021033
703015022535
703216024038
703417026042
703618028046
703819029046
704020031051
704422034056
704824036056
705226040065
705628042065
706030046074
706432048074
706834052082
707236054082
707638056082
Model NO. Dimensions（mm）
d D B
7200 10 30 9
7201 12 32 10
7202 15 35 11
7203 17 40 12
7204 20 47 14
7205 25 52 15
7206 30 62 16
7207 35 72 17
7208 40 80 18
7209 45 85 19
7210 50 90 21
7211 55 100 21
7212 60 110 22
7213 65 120 23
7214 70 125 24
7215 75 130 25
7216 80 140 26
7217 85 150 28
7218 90 160 30
7219 95 170 32
7220 100 180 34
7221 105 190 36
7222 110 200 38
7224 120 215 40
7226 130 230 40
7228 140 250 42
7230 150 270 45
7232 160 290 48
7234 170 310 52
7236 180 320 52
7238 190 340 55
7240 200 360 58
7244 220 400 65
7248 240 440 72
7252 260 480 80
Model NO. Dimensions（mm）
d D B
7300 10 35 11
7301 12 37 12
7302 15 42 13
7303 17 47 14
7304 20 52 15
7305 25 62 17
7306 30 72 19
7307 35 80 21
7308 40 90 23
7309 45 100 25
7310 50 110 27
7311 55 120 29
7312 60 130 31
7313 65 140 33
7314 70 150 35
7315 75 160 37
7316 80 170 39
7317 85 180 41
7318 90 190 43
7319 95 200 45
7320 100 215 47
7321 105 225 49
7322 110 240 50
7324 120 260 55
7326 130 280 58
7328 140 300 62
7330 150 320 65
7332 160 340 68
7334 170 360 72
7336 180 380 75
7338 190 400 78
7340 200 420 80
7344 220 460 88
7348 240 500 95
Model NO. Dimensions（mm）
d D B
7405 25 80 21
7406 30 90 23
7407 35 100 25
7408 40 110 27
7409 45 120 29
7410 50 130 31
7411 55 140 33
7412 60 150 35
7413 65 160 37
7414 70 180 42
7415 75 190 45
7416 80 200 48
7417 85 210 52
7418 90 225 54
7419 95 250 55
7420 100 265 60
Model NO. Dimensions（mm）
d D B
3200 10 30 14.3
3201 12 32 15.9
3202 15 35 15.9
3203 17 40 17.5
3204 20 47 20.6
3205 25 52 20.6
3206 30 62 23.8
3207 35 72 27
3208 40 80 30.2
3209 45 85 30.2
3210 50 90 30.2
3211 55 100 33.3
3212 60 110 36.5
3213 65 120 38.1
3214 70 125 39.7
3215 75 130 41.3
3216 80 140 44.4
3217 85 150 49.2
3218 90 160 52.4
3219 95 170 55.6
3220 100 180 60.3
3221 105 190 65.1
3222 110 200 69.8
3224 120 215 76
3226 130 230 80
3228 140 250 88
Model NO. Dimensions（mm）
d D B
3302 15 42 19
3303 17 47 22.2
3304 20 52 22.2
3305 25 62 25.4
3306 30 72 30.2
3307 35 80 34.9
3308 40 90 36.5
3309 45 100 39.7
3310 50 110 44.4
3311 55 120 49.2
3312 60 130 54
3313 65 140 58.7
3314 70 150 63.5
3315 75 160 68.3
3316 80 170 68.3
3317 85 180 73
3318 90 190 73
3319 95 200 77.8
3320 100 215 82.6
3321 105 225 87.3
3322 110 240 92.1

Q & A

 Are you a trading company or a manufacturer?

We are not only a professional bearing manufacturer, but also a highly experienced trading company.
This enables us to supply a wide range of bearing products — both those we produce ourselves and those sourced from reliable partners — to meet diverse customer needs.

 Can I visit your factory?

Sure, you’re welcome to visit our factory anytime!
Just let us know your schedule in advance, and we’ll arrange everything for you.

Can we take some samples? Any fees?

Yes, we can provide free samples, but the shipping cost is on your side.
If you place an order after confirming the sample, we will refund the shipping fee or deduct it from the order total.

What are the loading ports?

Our primary loading port is Qingdao, but we can also ship from Shanghai, Tianjin or other ports in China as needed.

Is there quality inspection before loading?

Of course. All our products undergo strict quality inspection before packing. Any that do not meet the standards are rejected and discarded.
Customers are also welcome to arrange third-party inspections before loading.
