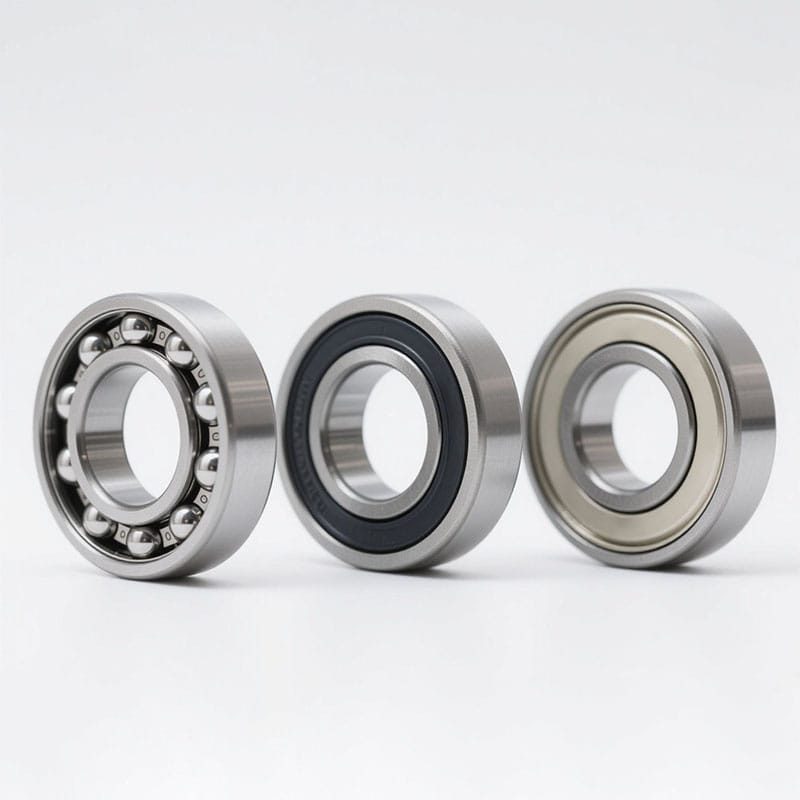

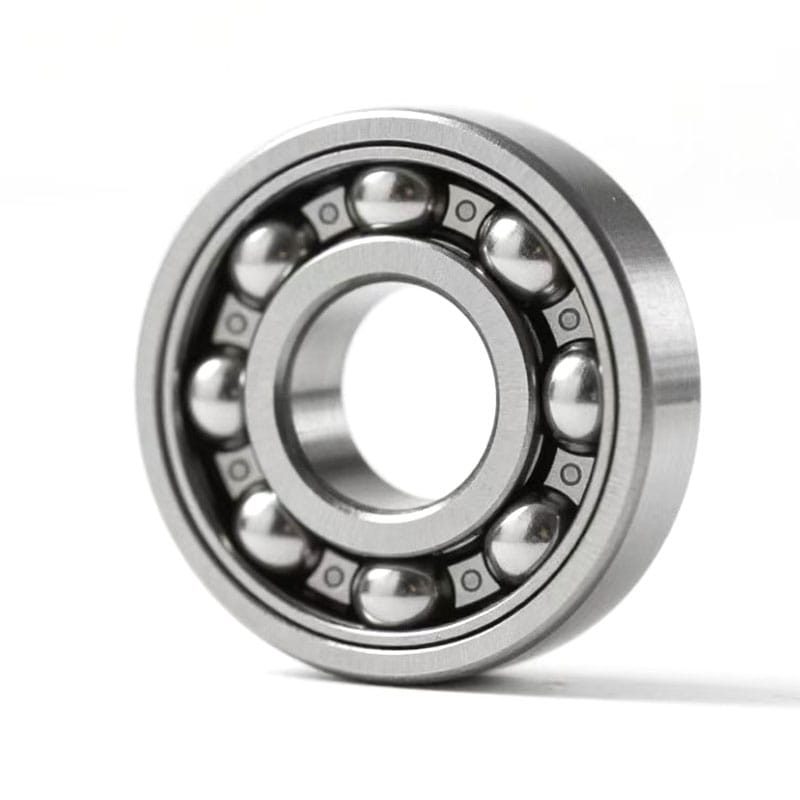

Deep Groove Ball Bearings
SUMMARY
Deep groove ball bearings are the most widely used type of rolling bearings. They feature simple structure, low friction, and high-speed capability. Designed to support both radial and limited axial loads, they are suitable for a wide range of applications including electric motors, household appliances, automotive systems, and industrial machinery. Our bearings are manufactured with strict quality control to ensure smooth operation, extended service life, and excellent performance under various conditions.
SERIES
· 6000 series
· 6200 series
· 6300 series
· 6400 series
……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.
| Model NO. | Dimensions（mm） | ||
| d | D | B | |
| 6000 | 10 | 26 | 8 |
| 6001 | 12 | 28 | 8 |
| 6002 | 15 | 32 | 9 |
| 6003 | 17 | 35 | 10 |
| 6004 | 20 | 42 | 12 |
| 6005 | 25 | 47 | 12 |
| 6006 | 30 | 55 | 13 |
| 6007 | 35 | 62 | 14 |
| 6008 | 40 | 68 | 15 |
| 6009 | 45 | 75 | 16 |
| 6010 | 50 | 80 | 16 |
| 6011 | 55 | 90 | 18 |
| 6012 | 60 | 95 | 18 |
| 6013 | 65 | 100 | 18 |
| 6014 | 70 | 110 | 20 |
| 6015 | 75 | 115 | 20 |
| 6016 | 80 | 125 | 22 |
| 6017 | 85 | 130 | 22 |
| 6018 | 90 | 140 | 24 |
| 6019 | 95 | 145 | 24 |
| 6020 | 100 | 150 | 24 |
| 6021 | 110 | 160 | 26 |
| 6022 | 105 | 170 | 28 |
| 6024 | 120 | 180 | 28 |
| 6026 | 130 | 200 | 33 |
| 6028 | 140 | 210 | 33 |
| 6030 | 150 | 225 | 35 |
| 6032 | 160 | 240 | 38 |
| 6034 | 170 | 260 | 42 |
| 6036 | 180 | 280 | 46 |
| 6038 | 190 | 290 | 46 |
| 6040 | 200 | 310 | 51 |
| 6044 | 220 | 340 | 56 |
| 6048 | 240 | 360 | 56 |
| 6052 | 260 | 400 | 65 |
| 6056 | 280 | 420 | 65 |
| 6060 | 300 | 460 | 50 |
| Model NO. | Dimensions（mm） | ||
| d | D | B | |
| 6200 | 10 | 30 | 9 |
| 6201 | 12 | 32 | 10 |
| 6202 | 15 | 35 | 11 |
| 6203 | 17 | 40 | 12 |
| 6204 | 20 | 47 | 14 |
| 6205 | 25 | 52 | 15 |
| 6206 | 30 | 62 | 16 |
| 6207 | 35 | 72 | 17 |
| 6208 | 40 | 80 | 18 |
| 6209 | 45 | 85 | 19 |
| 6210 | 50 | 90 | 20 |
| 6211 | 55 | 100 | 21 |
| 6212 | 60 | 110 | 22 |
| 6213 | 65 | 120 | 23 |
| 6214 | 70 | 125 | 24 |
| 6215 | 75 | 130 | 25 |
| 6216 | 80 | 140 | 26 |
| 6217 | 85 | 150 | 28 |
| 6218 | 90 | 160 | 30 |
| 6219 | 95 | 170 | 32 |
| 6220 | 100 | 180 | 34 |
| 6221 | 105 | 190 | 36 |
| 6222 | 110 | 200 | 38 |
| 6224 | 120 | 215 | 40 |
| 6226 | 130 | 230 | 40 |
| 6228 | 140 | 250 | 42 |
| 6230 | 150 | 270 | 45 |
| 6232 | 160 | 290 | 48 |
| 6234 | 170 | 310 | 52 |
| 6236 | 180 | 320 | 52 |
| 6238 | 190 | 340 | 55 |
| 6240 | 200 | 360 | 58 |
| 6244 | 220 | 400 | 65 |
| 6248 | 240 | 440 | 72 |
| Model NO. | Dimensions（mm） | ||
| d | D | B | |
| 6300 | 10 | 35 | 11 |
| 6301 | 12 | 37 | 12 |
| 6302 | 15 | 42 | 13 |
| 6303 | 17 | 47 | 14 |
| 6304 | 20 | 52 | 15 |
| 6305 | 25 | 62 | 17 |
| 6306 | 30 | 72 | 19 |
| 6307 | 35 | 80 | 21 |
| 6308 | 40 | 90 | 23 |
| 6309 | 45 | 100 | 25 |
| 6310 | 50 | 110 | 27 |
| 6311 | 55 | 120 | 29 |
| 6312 | 60 | 130 | 31 |
| 6313 | 65 | 140 | 33 |
| 6314 | 70 | 150 | 35 |
| 6315 | 75 | 160 | 37 |
| 6316 | 80 | 170 | 39 |
| 6317 | 85 | 180 | 41 |
| 6318 | 90 | 190 | 43 |
| 6319 | 95 | 200 | 45 |
| 6320 | 100 | 215 | 47 |
| 6321 | 105 | 225 | 49 |
| 6322 | 110 | 240 | 50 |
| 6324 | 120 | 260 | 55 |
| 6326 | 130 | 280 | 58 |
| 6328 | 140 | 300 | 62 |
| 6330 | 150 | 320 | 65 |
| 6332 | 160 | 340 | 68 |
| 6334 | 170 | 360 | 72 |
| 6336 | 180 | 380 | 75 |
| 6338 | 190 | 400 | 78 |
| 6340 | 200 | 420 | 80 |
| Model NO. | Dimensions（mm） | ||
| d | D | B | |
| 6402 | 15 | 47 | 15 |
| 6403 | 17 | 62 | 17 |
| 6404 | 20 | 72 | 19 |
| 6405 | 25 | 80 | 21 |
| 6406 | 30 | 90 | 23 |
| 6407 | 35 | 100 | 25 |
| 6408 | 40 | 110 | 27 |
| 6409 | 45 | 120 | 29 |
| 6410 | 50 | 130 | 31 |
| 6411 | 55 | 140 | 33 |
| 6412 | 60 | 150 | 35 |
| 6413 | 65 | 160 | 37 |
| 6414 | 70 | 180 | 42 |
| 6415 | 75 | 190 | 45 |
| 6416 | 80 | 200 | 48 |
| 6417 | 85 | 210 | 52 |
| 6418 | 90 | 225 | 54 |
| 6420 | 100 | 250 | 58 |
| 6422 | 110 | 280 | 65 |
Q & A
Are you a trading company or a manufacturer?
We are not only a professional bearing manufacturer, but also a highly experienced trading company.
This enables us to supply a wide range of bearing products — both those we produce ourselves and those sourced from reliable partners — to meet diverse customer needs.
Can I visit your factory?
Sure, you’re welcome to visit our factory anytime!
Just let us know your schedule in advance, and we’ll arrange everything for you.
Can we take some samples? Any fees?
Yes, we can provide free samples, but the shipping cost is on your side.
If you place an order after confirming the sample, we will refund the shipping fee or deduct it from the order total.
What are the loading ports?
Our primary loading port is Qingdao, but we can also ship from Shanghai, Tianjin or other ports in China as needed.
Is there quality inspection before loading?
Of course. All our products undergo strict quality inspection before packing. Any that do not meet the standards are rejected and discarded.
Customers are also welcome to arrange third-party inspections before loading.
