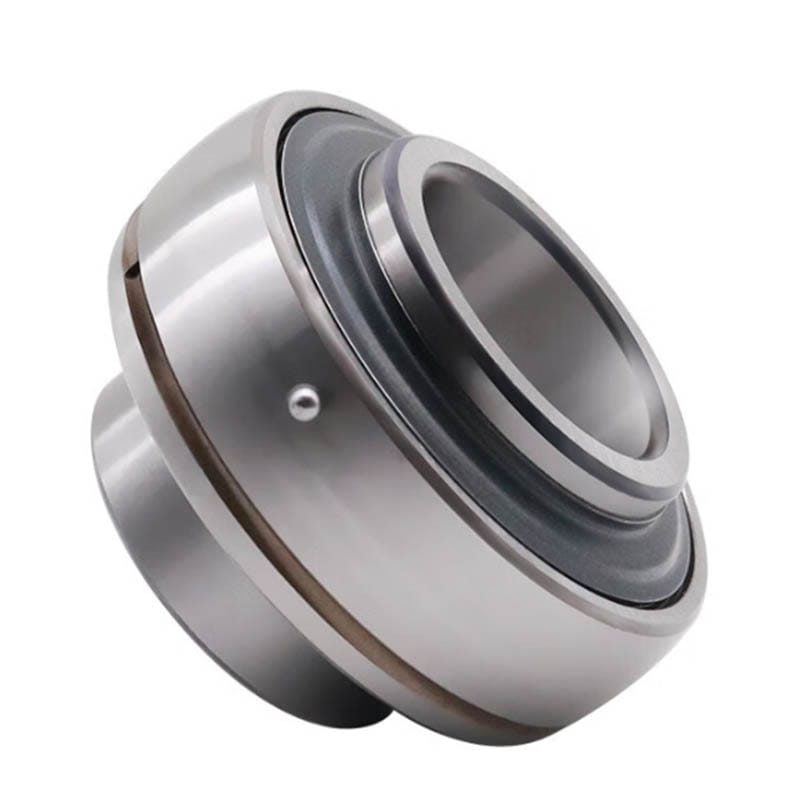

Mounted insert Bearings
SUMMARY

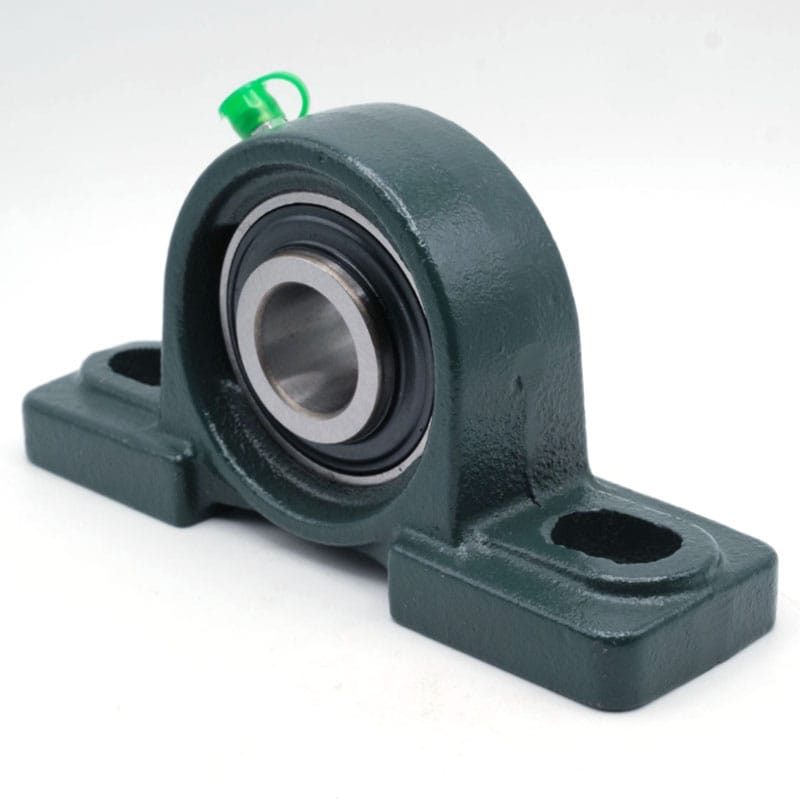

Pillow block bearings are a type of mounted bearing designed to support rotating shafts and reduce friction between the shaft and housing. These bearings feature a ball bearing insert housed in a solid block, often made of cast iron, steel, or polymer materials, with a variety of housing designs for different installation needs. They are commonly used in industrial machinery, conveyor systems, and agricultural equipment, providing reliable performance and easy maintenance with a compact, self-aligning design.
SERIES

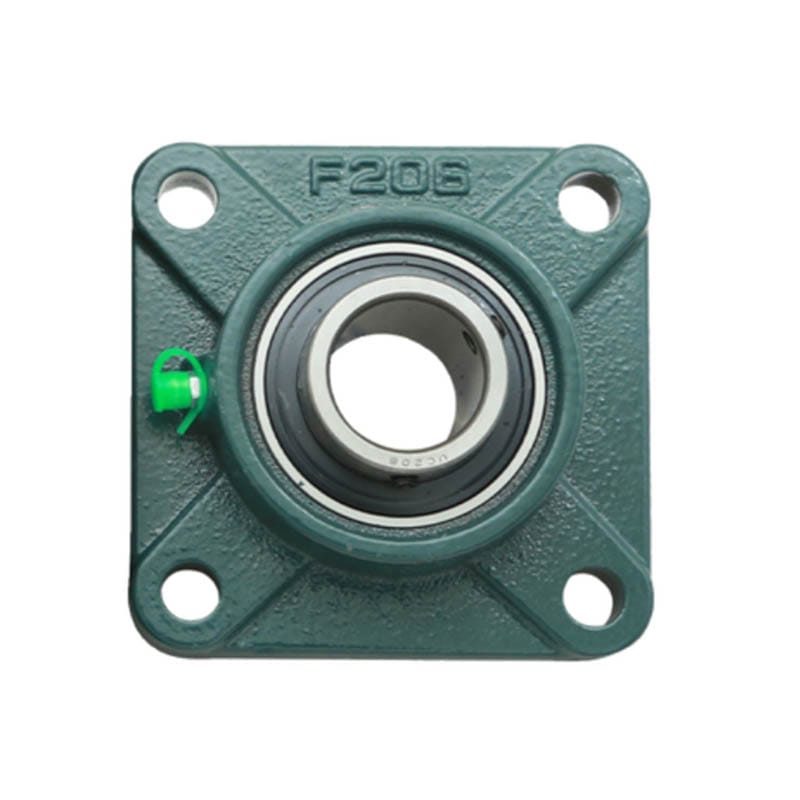

· UC series, UCP series, UCPA series, UCF series, UCFL series,UCFC series, UCT series, UK series, UKP series
……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.
| Model NO. | d | D | B | (S) | S1 | C | C1 | C2 | dS | |
| max | max | min | max | |||||||
| UC 201S | 12 | 40 | 27.4 | 11.5 | 15.9 | 12 | 15 | 3.4 | 2 | M5×0.8 |
| UC 201S-8 | 12.7 | 10-32UNF | ||||||||
| UC 201S-9 | 14.288 | 10-32UNF | ||||||||
| UC 202S | 15 | M5×0.8 | ||||||||
| UC 202S-10 | 15.875 | 10-32UNF | ||||||||
| UC 203S | 17 | M5×0.8 | ||||||||
| UC 203S-11 | 17.462 | 10-32UNF | ||||||||
| UC 201 | 12 | 47 | 31 | 12.7 | 18.3 | 14 | 17 | 3.7 | 2 | M6×1 |
| UC 201-8 | 12.7 | 1/4-28UNF | ||||||||
| UC 201-9 | 14.288 | 1/4-28UNF | ||||||||
| UC 202 | 15 | M6×1 | ||||||||
| UC 202-10 | 15.875 | 1/4-28UNF | ||||||||
| UC 203 | 17 | M6×1 | ||||||||
| UC 203-11 | 17.462 | 1/4-28UNF | ||||||||
| UC 204-12 | 19.052 | 47 | 31 | 12.7 | 18.3 | 14 | 17 | 3.7 | 2 | 1/4-28UNF |
| UC 204 | 20 | M6×1 | ||||||||
| UC 205-13 | 20.638 | 52 | 34.1 | 14.3 | 19.8 | 15 | 17 | 3.9 | 2.5 | 1/4-28UNF |
| UC 205-14 | 22.225 | 1/4-28UNF | ||||||||
| UC 205-15 | 23.812 | 1/4-28UNF | ||||||||
| UC 205 | 25 | M6×1 | ||||||||
| UC 205-16 | 25.4 | 1/4-28UNF | ||||||||
| UC 206-17 | 26.988 | 62 | 38.1 | 15.9 | 22.2 | 16 | 19 | 5 | 2.5 | 1/4-28UNF |
| UC 206-18 | 28.575 | 1/4-28UNF | ||||||||
| UC 206 | 30 | M6×1 | ||||||||
| UC 206-19 | 30.162 | 1/4-28UNF | ||||||||
| UC 206-20 | 31.75 | 1/4-28UNF | ||||||||
| UC 207-20 | 31.75 | 72 | 42.9 | 17.5 | 25.4 | 17 | 20 | 5.7 | 3 | 5/16-24UNF |
| UC 207-21 | 33.338 | 5/16-24UNF | ||||||||
| UC 207-22 | 34.925 | 5/16-24UNF | ||||||||
| UC 207 | 35 | M8×1 | ||||||||
| UC 207-23 | 36.512 | 5/16-24UNF | ||||||||
| UC 208-24 | 38.1 | 80 | 49.2 | 19 | 30.2 | 18 | 21 | 6.2 | 3 | 5/16-24UNF |
| UC 208-25 | 39.688 | 5/16-24UNF | ||||||||
| UC 208 | 40 | M8×1 | ||||||||
| UC 209-26 | 41.275 | 85 | 49.2 | 19 | 30.2 | 19 | 22 | 6.4 | 3 | 5/16-24UNF |
| UC 209-27 | 42.862 | 5/16-24UNF | ||||||||
| UC 209-28 | 44.45 | 5/16-24UNF | ||||||||
| UC 209 | 45 | M8×1 | ||||||||
| UC 210-29 | 46.038 | 90 | 51.6 | 19 | 32.6 | 20 | 24 | 6.5 | 3.5 | 3/8-24UNF |
| UC 210-30 | 47.625 | 3/8-24UNF | ||||||||
| UC 210-31 | 49.212 | 3/8-24UNF | ||||||||
| UC 210 | 50 | M10×1.25 | ||||||||
| UC 210-32 | 50.8 | 3/8-24UNF | ||||||||
| UC 211-32 | 50.8 | 100 | 55.6 | 22.2 | 33.4 | 21 | 25 | 7 | 3.5 | 3/8-24UNF |
| UC 211-33 | 52.388 | 3/8-24UNF | ||||||||
| UC 211-34 | 53.975 | 3/8-24UNF | ||||||||
| UC 211 | 55 | M10×1.25 | ||||||||
| UC 211-35 | 55.562 | 3/8-24UNF | ||||||||
| UC 212-36 | 57.15 | 110 | 65.1 | 25.4 | 39.7 | 22 | 27 | 7.6 | 4 | 3/8-24UNF |
| UC 212-37 | 58.738 | 3/8-24UNF | ||||||||
| UC 212 | 60 | M10×1.25 | ||||||||
| UC 212-38 | 60.325 | 3/8-24UNF | ||||||||
| UC 212-39 | 61.912 | 3/8-24UNF | ||||||||
| UC 213-40 | 63.5 | 120 | 68.3 | 25.4 | 42.9 | 23 | 32 | 8.9 | 5 | 3/8-24UNF |
| UC 213 | 65 | M10×1.25 | ||||||||
| UC 213-42 | 66.675 | 3/8-24UNF | ||||||||
| UC 214-43 | 68.262 | 125 | 74.6 | 30.2 | 44.4 | 24 | 35 | 8.9 | 5 | 7/16-20UNF |
| UC 214-44 | 69.85 | 7/16-20UNF | ||||||||
| UC 214 | 70 | M12×1.5 | ||||||||
| UC 215-45 | 71.438 | 130 | 77.8 | 33.3 | 44.5 | 25 | 39 | 8.9 | 5 | 7/16-20UNF |
| UC 215-46 | 73.025 | 7/16-20UNF | ||||||||
| UC 215-47 | 74.612 | 7/16-20UNF | ||||||||
| UC 215 | 75 | M12×1.5 | ||||||||
| UC 215-48 | 76.2 | 7/16-20UNF | ||||||||
| UC 216-50 | 79.375 | 140 | 82.6 | 33.3 | 49.3 | 26 | 43 | 8.9 | 6 | 7/16-20UNF |
| UC 216 | 80 | M12×1.5 | ||||||||
| UC 216-51 | 80.962 | 7/16-20UNF | ||||||||
| UC 217-52 | 82.55 | 150 | 85.7 | 34.1 | 51.6 | 28 | 50 | 10 | 6 | 7/16-20UNF |
| UC 217 | 85 | M12×1.5 | ||||||||
| UC 217-54 | 85.725 | 7/16-20UNF | ||||||||
| UC 217-55 | 87.312 | 7/16-20UNF | ||||||||
| UC 217-56 | 88.9 | 7/16-20UNF | ||||||||
| UC 218-56 | 88.9 | 160 | 96 | 39.7 | 56.3 | 30 | 50 | 10 | 6 | 7/16-20UNF |
| UC 218 | 90 | M12×1.5 | ||||||||
| UC 220 | 100 | 180 | 108 | 42 | 66 | 34 | 51 | 11.2 | 6 | M12×1.5 |
| UC 220-63 | 100.012 | 7/16-20UNF | ||||||||
| UC 220-64 | 101.6 | 7/16-20UNF | ||||||||
| Model NO. | d | D | B | (S) | S1 | C | C1 | C2 | dS | |
| max | max | min | max | |||||||
| UC 305 | 25 | 62 | 38 | 15 | 23 | 17 | 24 | 5.6 | 3 | M6x1 |
| UC 306 | 30 | 72 | 43 | 17 | 26 | 19 | 26 | 6 | 3 | M6x1 |
| UC 306-19 | 30.162 | 1/4-28UNF | ||||||||
| UC 307-20 | 31.75 | 80 | 48 | 19 | 29 | 21 | 28 | 6.7 | 3.5 | 5/16-24UNF |
| UC 307-21 | 33.338 | 5/16-24UNF | ||||||||
| UC 307-22 | 34.925 | 5/16-24UNF | ||||||||
| UC 307 | 35 | M8X1 | ||||||||
| UC 307-23 | 36.512 | 5/16-24UNF | ||||||||
| UC 308-24 | 38.1 | 90 | 52 | 19 | 33 | 23 | 30 | 7.5 | 4 | 3/8-24UNF |
| UC 308 | 40 | M10X1.25 | ||||||||
| UC 309-26 | 41.275 | 100 | 57 | 22 | 35 | 25 | 33 | 8.3 | 4 | 3/8-24UNF |
| UC 309-27 | 42.862 | 3/8-24UNF | ||||||||
| UC 309-28 | 44.45 | 3/8-24UNF | ||||||||
| UC 309 | 45 | M10x1.25 | ||||||||
| UC 310-30 | 47.625 | 110 | 61 | 22 | 39 | 27 | 35 | 9.5 | 4.5 | 7/16-20UNF |
| UC 310-31 | 49.212 | 7/16-20UNF | ||||||||
| UC 310 | 50 | M12x1.5 | ||||||||
| UC 311-32 | 50.8 | 120 | 66 | 25 | 41 | 29 | 37 | 10.3 | 5 | 7/16-20UNF |
| UC 311-33 | 52.388 | 7/16-20UNF | ||||||||
| UC 311 | 55 | M12x1.5 | ||||||||
| UC 312 | 60 | 130 | 71 | 26 | 45 | 31 | 39 | 11.1 | 5 | M12x1.5 |
| UC 312-39 | 61.912 | 7/16-20UNF | ||||||||
| UC 313-40 | 63.5 | 140 | 75 | 30 | 45 | 33 | 41 | 11.9 | 5.5 | 7/16-20UNF |
| UC 313 | 65 | M12x1.5 | ||||||||
| UC 314-43 | 68.262 | 150 | 78 | 33 | 45 | 35 | 43 | 12.7 | 6 | 7/16-20UNF |
| UC 314 | 70 | M12x1.5 | ||||||||
| UC 315-47 | 74.612 | 160 | 82 | 32 | 50 | 37 | 46 | 13.5 | 6 | 1/2-20UNF |
| UC 315 | 75 | M14X1.5 | ||||||||
| UC 315-48 | 76.2 | 1/2-20UNF | ||||||||
| UC 316 | 80 | 170 | 86 | 34 | 52 | 39 | 48 | 14.3 | 6.5 | M14x1.5 |
| UC 316-51 | 80.962 | 1/2-20UNF | ||||||||
| UC 317 | 85 | 180 | 96 | 40 | 56 | 41 | 50 | 15.1 | 7 | M16x1.5 |
| UC 318-55 | 87.312 | 190 | 96 | 40 | 56 | 43 | 52 | 15.9 | 7 | 5/8-18UNF |
| UC 318 | 90 | M16x1.5 | ||||||||
| UC 319 | 95 | 200 | 103 | 41 | 62 | 45 | 54 | 16.7 | 7.5 | M16X1.5 |
| UC 320 | 100 | 215 | 108 | 42 | 66 | 47 | 58 | 18.3 | 8 | M18x1.5 |
| UC 320-63 | 100.012 | 5/8-18UNF | ||||||||
| UC 320-64 | 101.6 | 5/8-18UNF | ||||||||
| UC 321 | 105 | 225 | 112 | 44 | 68 | 49 | 60 | 19.1 | 8 | M18x1.5 |
| UC 322 | 110 | 240 | 117 | 46 | 71 | 50 | 62 | 20.6 | 8.5 | M18x1.5 |
| UC 324 | 120 | 260 | 126 | 51 | 75 | 55 | 66 | 20.6 | 9 | M18x1.5 |
| UC 326 | 130 | 280 | 135 | 54 | 81 | 58 | 72 | 22.2 | 9.5 | M20x1.5 |
| UC 328 | 140 | 300 | 145 | 59 | 86 | 62 | 76 | 23.8 | 10.5 | M20x1.5 |
| Model NO. | dZ | d0 | D | B | C | C1 | C2 | H 300 | H 2300 | |
| max | min | max | ||||||||
| UK 205 | 25 | 20 | 52 | 27 | 15 | 17 | 3.9 | 2.5 | H 305 | H 2305 |
| UK 206 | 30 | 25 | 62 | 30 | 16 | 19 | 5 | 2.5 | H 306 | H 2306 |
| UK 207 | 35 | 30 | 72 | 34 | 17 | 20 | 5.7 | 3 | H 307 | H 2307 |
| UK 208 | 40 | 35 | 80 | 36 | 18 | 21 | 6.2 | 3 | H 308 | H 2308 |
| UK 209 | 45 | 40 | 85 | 39 | 19 | 22 | 6.4 | 3 | H 309 | H 2309 |
| UK 210 | 50 | 45 | 90 | 43 | 20 | 24 | 6.5 | 3.5 | H 310 | H 2310 |
| UK 211 | 55 | 50 | 100 | 47 | 21 | 25 | 7 | 3.5 | H 311 | H 2311 |
| UK 212 | 60 | 55 | 110 | 49 | 22 | 27 | 7.6 | 4 | H 312 | H 2312 |
| UK 213 | 60 | 65 | 120 | 51 | 23 | 39 | 8.9 | 5 | H 313 | H 2313 |
| UK 215 | 75 | 65 | 130 | 58 | 25 | 42 | 8.9 | 5 | H 315 | H 2315 |
| UK 216 | 80 | 70 | 140 | 61 | 26 | 45 | 8.8 | 6 | H 316 | H 2316 |
| UK 217 | 85 | 75 | 150 | 64 | 28 | 48 | 10 | 6 | H 317 | H 2317 |
| UK 218 | 90 | 80 | 160 | 68 | 30 | 51 | 10 | 6 | H 318 | H 2318 |
| UK 305 | 25 | 20 | 62 | 27 | 17 | 24 | 5.6 | 3 | H 2305 | |
| UK 306 | 30 | 25 | 72 | 30 | 19 | 26 | 6 | 3 | H 2306 | |
| UK 307 | 35 | 30 | 80 | 34 | 21 | 28 | 6.7 | 3.5 | H 2307 | |
| UK 308 | 40 | 35 | 90 | 36 | 23 | 30 | 7.5 | 4 | H 2308 | |
| UK 309 | 45 | 40 | 100 | 39 | 25 | 33 | 8.3 | 4 | H 2309 | |
| UK 310 | 50 | 45 | 110 | 43 | 27 | 35 | 9.5 | 4.5 | H 2310 | |
| UK 311 | 55 | 50 | 120 | 47 | 29 | 37 | 10.3 | 5 | H 2311 | |
| UK 312 | 60 | 55 | 130 | 49 | 31 | 39 | 11.1 | 5 | H 2312 | |
| UK 313 | 65 | 60 | 140 | 51 | 33 | 41 | 11.9 | 5.5 | H 2313 | |
| UK 315 | 75 | 65 | 160 | 58 | 37 | 46 | 13.5 | 6 | H 2315 | |
| UK 316 | 80 | 70 | 170 | 61 | 39 | 48 | 14.3 | 6.5 | H 2316 | |
| UK 317 | 85 | 75 | 180 | 64 | 41 | 50 | 15.1 | 7 | H 2317 | |
| UK 318 | 90 | 80 | 190 | 68 | 43 | 52 | 15.9 | 7 | H 2318 | |
| UK 319 | 95 | 85 | 200 | 71 | 45 | 54 | 16.7 | 7.5 | H 2319 | |
| UK 320 | 100 | 90 | 215 | 77 | 47 | 58 | 18.3 | 8 | H 2320 | |
| UK 322 | 110 | 100 | 240 | 84 | 50 | 62 | 20.6 | 8.5 | H 2322 | |
| UK 324 | 120 | 110 | 260 | 90 | 55 | 66 | 20.6 | 9 | H 2324 | |
| UK 326 | 130 | 115 | 280 | 98 | 58 | 72 | 22.2 | 9.5 | H 2326 | |
| UK 328 | 140 | 125 | 300 | 107 | 62 | 76 | 23.8 | 10.5 | H 2328 | |
