Cylindrical Roller Bearings

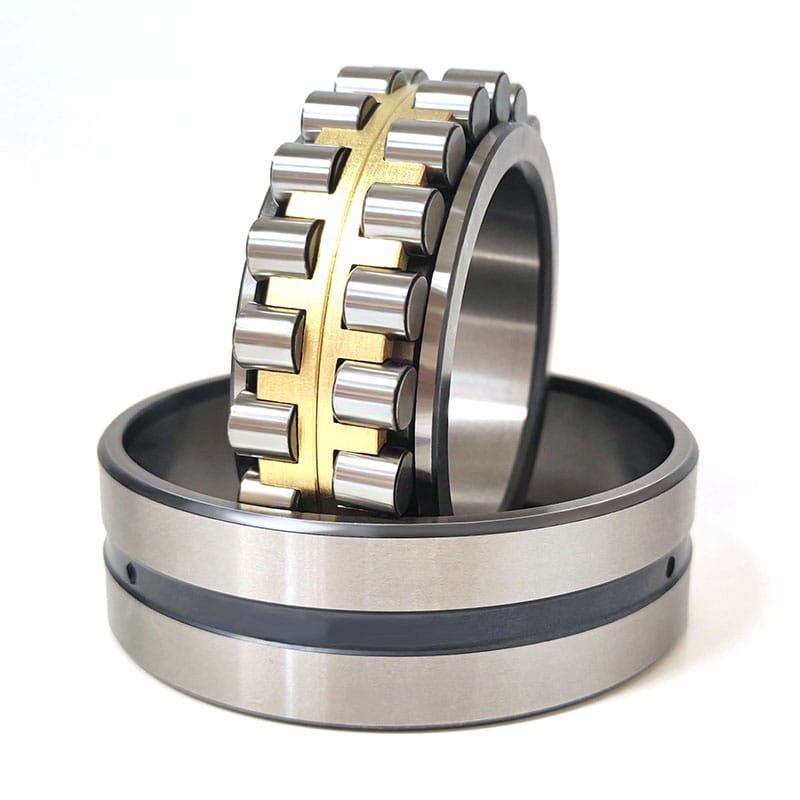

0-圆柱滚子轴承

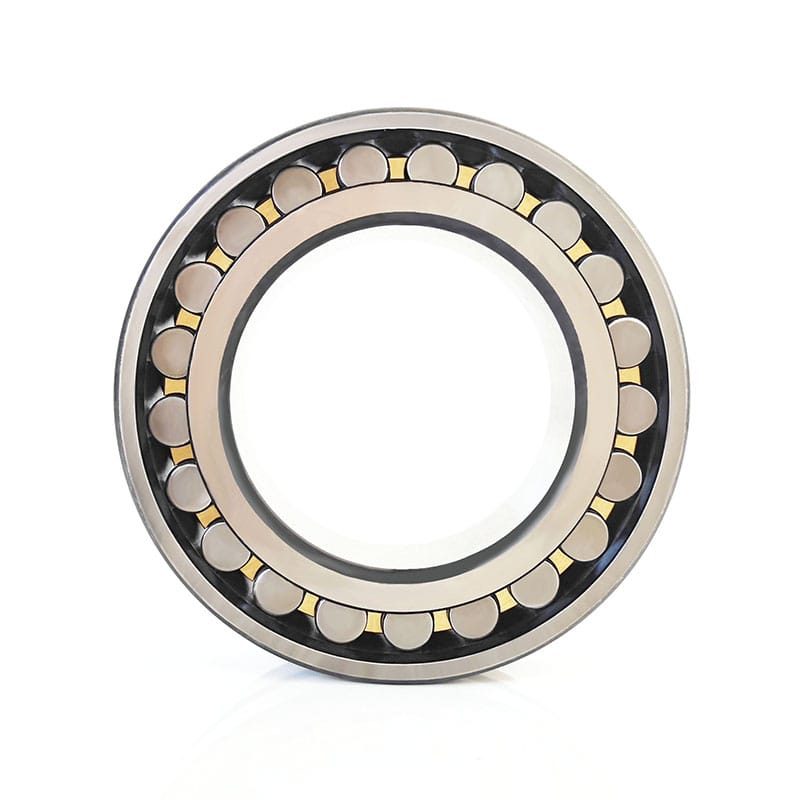

圆柱滚子2

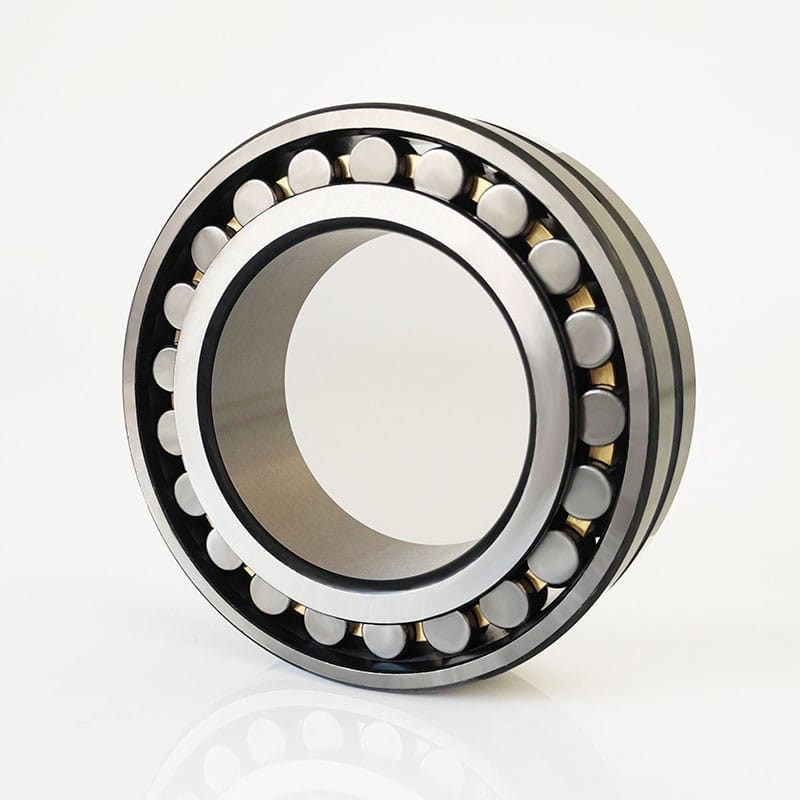

圆柱滚子3 拷贝

SUMMARY

Cylindrical roller bearings are designed to carry heavy radial loads and operate at high speeds. Featuring cylindrical rollers in linear contact with the raceways, they offer high rigidity and load-carrying capacity. These bearings are available in various designs such as NU, NJ, NUP, and N types, allowing for axial displacement or fixed positioning. They are widely used in gearboxes, electric motors, machine tools, and steel machinery. Our cylindrical roller bearings ensure low friction, stable performance, and long service life under demanding conditions.

SERIES

· Single ROW:
N type, NU type, NJ type, NUP type, NF type, NH type

 · Double Row:
NN type, NNU type

……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.

CONTACT US
Model NO. Dimensions（mm）
N NU NJ d D B
N 1005 NU 1005 NJ 1005 25 47 12
N 1006 NU 1006 NJ 1006 30 55 13
N 1007 NU 1007 NJ 1007 35 62 14
N 1008 NU 1008 NJ 1008 40 68 15
N 1009 NU 1009 NJ 1009 45 75 16
N 1010 NU 1010 NJ 1010 50 80 16
N 1011 NU 1011 NJ 1011 55 90 18
N 1012 NU 1012 NJ 1012 60 95 18
N 1013 NU 1013 NJ 1013 65 100 18
N 1014 NU 1014 NJ 1014 70 110 20
N 1015 NU 1015 NJ 1015 75 115 20
N 1016 NU 1016 NJ 1016 80 125 22
N 1017 NU 1017 NJ 1017 85 130 22
N 1018 NU 1018 NJ 1018 90 140 24
N 1019 NU 1019 NJ 1019 95 145 24
N 1020 NU 1020 NJ 1020 100 150 24
N 1021 NU 1021 NJ 1021 105 160 26
N 1022 NU 1022 NJ 1022 110 170 28
N 1024 NU 1024 NJ 1024 120 180 28
N 1026 NU 1026 NJ 1026 130 200 33
N 1028 NU 1028 NJ 1028 140 210 33
N 1030 NU 1030 NJ 1030 150 225 35
N 1032 NU 1032 NJ 1032 160 240 38
N 1034 NU 1034 NJ 1034 170 260 42
N 1036 NU 1036 NJ 1036 180 280 46
N 1038 NU 1038 NJ 1038 190 290 46
N 1040 NU 1040 NJ 1040 200 310 51
N 1044 NU 1044 NJ 1044 220 340 56
N 1048 NU 1048 NJ 1048 240 360 56
N 1052 NU 1052 NJ 1052 260 400 65
N 1056 NU 1056 NJ 1056 280 420 65
N 1060 NU 1060 NJ 1060 300 460 74
N 1064 NU 1064 NJ 1064 320 480 74
N 1068 NU 1068 NJ 1068 340 520 82
N 1072 NU 1072 NJ 1072 360 540 82
N 1076 NU 1076 NJ 1076 380 560 82
N 1080 NU 1080 NJ 1080 400 600 90
N 1084 NU 1084 NJ 1084 420 620 90
N 1088 NU 1088 NJ 1088 440 650 94
N 1092 NU 1092 NJ 1092 460 680 100
N 1096 NU 1096 NJ 1096 480 700 100
N 202 NU 202 NJ 202 15 35 11
N 203 NU 203 NJ 203 17 40 12
N 204 NU 204 NJ 204 20 47 14
N 205 NU 205 NJ 205 25 52 15
N 206 NU 206 NJ 206 30 62 16
N 207 NU 207 NJ 207 35 72 17
N 208 NU 208 NJ 208 40 80 18
N 209 NU 209 NJ 209 45 85 19
N 210 NU 210 NJ 210 50 90 20
N 211 NU 211 NJ 211 55 100 21
N 212 NU 212 NJ 212 60 110 22
N 213 NU 213 NJ 213 65 120 23
N 214 NU 214 NJ 214 70 125 24
N 215 NU 215 NJ 215 75 130 25
N 216 NU 216 NJ 216 80 140 26
N 217 NU 217 NJ 217 85 150 28
N 218 NU 218 NJ 218 90 160 30
N 219 NU 219 NJ 219 95 170 32
N 220 NU 220 NJ 220 100 180 34
N 221 NU 221 NJ 221 105 190 36
N 222 NU 222 NJ 222 110 200 38
N 224 NU 224 NJ 224 120 215 40
N 226 NU 226 NJ 226 130 230 40
N 228 NU 228 NJ 228 140 250 42
N 230 NU 230 NJ 230 150 270 45
N 232 NU 232 NJ 232 160 290 48
N 234 NU 234 NJ 234 170 310 52
N 236 NU 236 NJ 236 180 320 52
N 238 NU 238 NJ 238 190 340 55
N 240 NU 240 NJ 240 200 360 58
N 244 NU 244 NJ 244 220 400 65
N 248 NU 248 NJ 248 240 440 72
N 252 NU 252 NJ 252 260 480 80
N 256 NU 256 NJ 256 280 500 80
N 260 NU 260 NJ 260 300 540 85
N 264 NU 264 NJ 264 320 580 92
N 2203 NU 2203 NJ 2203 17 40 16
N 2204 NU 2204 NJ 2204 20 47 18
N 2205 NU 2205 NJ 2205 25 52 18
N 2206 NU 2206 NJ 2206 30 62 20
N 2207 NU 2207 NJ 2207 35 72 23
N 2208 NU 2208 NJ 2208 40 80 23
N 2209 NU 2209 NJ 2209 45 85 23
N 2210 NU 2210 NJ 2210 50 90 23
N 2211 NU 2211 NJ 2211 55 100 25
N 2212 NU 2212 NJ 2212 60 110 28
N 2213 NU 2213 NJ 2213 65 120 31
N 2214 NU 2214 NJ 2214 70 125 31
N 2215 NU 2215 NJ 2215 75 130 31
N 2216 NU 2216 NJ 2216 80 140 33
N 2217 NU 2217 NJ 2217 85 150 36
N 2218 NU 2218 NJ 2218 90 160 40
N 2219 NU 2219 NJ 2219 95 170 43
N 2220 NU 2220 NJ 2220 100 180 46
N 2222 NU 2222 NJ 2222 110 200 53
N 2224 NU 2224 NJ 2224 120 215 58
N 2226 NU 2226 NJ 2226 130 230 64
N 2228 NU 2228 NJ 2228 140 250 68
N 2230 NU 2230 NJ 2230 150 270 73
N 2232 NU 2232 NJ 2232 160 290 80
N 2234 NU 2234 NJ 2234 170 310 86
N 2236 NU 2236 NJ 2236 180 320 86
N 2238 NU 2238 NJ 2238 190 340 92
N 2240 NU 2240 NJ 2240 200 360 98
N 303 NU 303 NJ 303 17 47 14
N 304 NU 304 NJ 304 20 52 15
N 305 NU 305 NJ 305 25 62 17
N 306 NU 306 NJ 306 30 72 19
N 307 NU 307 NJ 307 35 80 21
N 308 NU 308 NJ 308 40 90 23
N 309 NU 309 NJ 309 45 100 25
N 310 NU 310 NJ 310 50 110 27
N 311 NU 311 NJ 311 55 120 29
N 312 NU 312 NJ 312 60 130 31
N 313 NU 313 NJ 313 65 140 33
N 314 NU 314 NJ 314 70 150 35
N 315 NU 315 NJ 315 75 160 37
N 316 NU 316 NJ 316 80 170 39
N 317 NU 317 NJ 317 85 180 41
N 318 NU 318 NJ 318 90 190 43
N 319 NU 319 NJ 319 95 200 45
N 320 NU 320 NJ 320 100 215 47
N 321 NU 321 NJ 321 105 225 49
N 322 NU 322 NJ 322 110 240 50
N 324 NU 324 NJ 324 120 260 55
N 326 NU 326 NJ 326 130 280 58
N 328 NU 328 NJ 328 140 300 62
N 330 NU 330 NJ 330 150 320 65
N 332 NU 332 NJ 332 160 340 68
N 334 NU 334 NJ 334 170 360 72
N 336 NU 336 NJ 336 180 380 75
N 338 NU 338 NJ 338 190 400 78
N 340 NU 340 NJ 340 200 420 80
N 344 NU 344 NJ 344 220 460 88
N 348 NU 348 NJ 348 240 500 95
N 352 NU 352 NJ 352 260 540 102
N 2304 NU 2304 NJ 2304 20 52 21
N 2305 NU 2305 NJ 2305 25 62 24
N 2306 NU 2306 NJ 2306 30 72 27
N 2307 NU 2307 NJ 2307 35 80 31
N 2308 NU 2308 NJ 2308 40 90 33
N 2309 NU 2309 NJ 2309 45 100 36
N 2310 NU 2310 NJ 2310 50 110 40
N 2311 NU 2311 NJ 2311 55 120 43
N 2312 NU 2312 NJ 2312 60 130 46
N 2313 NU 2313 NJ 2313 65 140 48
N 2314 NU 2314 NJ 2314 70 150 51
N 2315 NU 2315 NJ 2315 75 160 55
N 2316 NU 2316 NJ 2316 80 170 58
N 2317 NU 2317 NJ 2317 85 180 60
N 2318 NU 2318 NJ 2318 90 190 64
N 2319 NU 2319 NJ 2319 95 200 67
N 2320 NU 2320 NJ 2320 100 215 73
N 2322 NU 2322 NJ 2322 110 240 80
N 2324 NU 2324 NJ 2324 120 260 86
N 2326 NU 2326 NJ 2326 130 280 93
N 2328 NU 2328 NJ 2328 140 300 102
N 2330 NU 2330 NJ 2330 150 320 108
N 2332 NU 2332 NJ 2332 160 340 114
N 406 NU 406 NJ 406 30 90 23
N 407 NU 407 NJ 407 35 100 25
N 408 NU 408 NJ 408 40 110 27
N 409 NU 409 NJ 409 45 120 29
N 410 NU 410 NJ 410 50 130 31
N 411 NU 411 NJ 411 55 140 33
N 412 NU 412 NJ 412 60 150 35
N 413 NU 413 NJ 413 65 160 37
N 414 NU 414 NJ 414 70 180 42
N 415 NU 415 NJ 415 75 190 45
N 416 NU 416 NJ 416 80 200 48
N 417 NU 417 NJ 417 85 210 52
N 418 NU 418 NJ 418 90 225 54
N 419 NU 419 NJ 419 95 240 55
N 420 NU 420 NJ 420 100 250 58
N 421 NU 421 NJ 421 105 260 60
N 422 NU 422 NJ 422 110 280 65
N 424 NU 424 NJ 424 120 310 72
N 426 NU 426 NJ 426 130 340 78
N 428 NU 428 NJ 428 140 360 82
N 430 NU 430 NJ 430 150 380 85
Model NO. Dimensions（mm）
d D B
NN 4920 100 140 40
NN 4921 105 145 40
NN 4922 110 150 40
NN 4924 120 165 45
NN 4926 130 180 50
NN 4928 140 190 50
NN 4930 150 210 60
NN 4932 160 220 60
NN 4934 170 230 60
NN 4936 180 250 69
NN 4938 190 260 69
NN 4940 200 280 80
NN 4944 220 300 80
NN 4948 240 320 80
NN 4952 260 360 100
NN 4956 280 380 100
NN 4960 300 420 118
NN 4964 320 440 118
NN 3005 25 47 16
NN 3006 30 55 19
NN 3007 35 62 20
NN 3008 40 68 21
NN 3009 45 75 23
NN 3010 50 80 23
NN 3011 55 90 26
NN 3012 60 95 26
NN 3013 65 100 26
NN 3014 70 110 30
NN 3015 75 115 30
NN 3016 80 125 34
NN 3017 85 130 34
NN 3018 90 140 37
NN 3019 95 145 37
NN 3020 100 150 37
NN 3021 105 160 41
NN 3022 110 170 45
NN 3024 120 180 46
NN 3026 130 200 52
NN 3028 140 210 53
NN 3030 150 225 56
NN 3032 160 240 60
NN 3034 170 260 67
NN 3036 180 280 74
NN 3038 190 290 75
NN 3040 200 310 82
NN 3044 220 340 90
NN 3048 240 360 92
NN 3052 260 400 104
NN 3056 280 420 106
NN 3060 300 460 118
NN 3064 320 480 121
NN 3068 340 520 133
NN 3072 360 540 134
NN 3076 380 560 135
NN 3080 400 600 148
NN 3084 420 620 150
NN 3088 440 650 157
NN 3092 460 680 163
NN 3096 480 700 165
NN 30/500 500 720 167
NN 30/530 530 780 185
NN 30/560 560 820 195
NN 30/600 600 870 200
NN 30/630 630 920 212
NN 30/670 670 980 230
NNU 4920 100 140 40
NNU 4921 105 145 40
NNU 4922 110 150 40
NNU 4924 120 165 45
NNU 4926 130 180 50
NNU 4928 140 190 50
NNU 4930 150 210 60
NNU 4932 160 220 60
NNU 4934 170 230 60
NNU 4936 180 250 69
NNU 4938 190 260 69
NNU 4940 200 280 80
NNU 4944 220 300 80
NNU 4948 240 320 80
NNU 4952 260 360 100
NNU 4956 280 380 100
NNU 4960 300 420 118
NNU 4964 320 440 118
NNU 4968 340 460 118
NNU 4972 360 480 118
NNU 4976 380 520 140
NNU 4980 400 540 140
NNU 4984 420 560 140
NNU 4988 440 600 160
NNU 4992 460 620 160
NNU 4996 480 650 170
NNU 49/500 500 670 170
NNU 49/530 530 710 180
NNU 49/560 560 750 190
NNU 49/600 600 800 200
NNU 49/630 630 850 218
NNU 49/670 670 900 230
NNU 49/710 710 950 243
NNU 49/750 750 1000 250
NNU 4120 100 165 65
NNU 4121 105 175 69
NNU 4122 110 180 69
NNU 4124 120 200 80
NNU 4126 130 210 80
NNU 4128 140 225 85
NNU 4130 150 250 100
NNU 4132 160 270 109
NNU 4134 170 280 109
NNU 4136 180 300 118
NNU 4138 190 320 128
NNU 4140 200 340 140
NNU 4144 220 370 150
NNU 4148 240 400 160
NNU 4152 260 440 180
NNU 4156 280 460 180
NNU 4160 300 500 200
NNU 4164 320 540 218
NNU 4168 340 580 243
NNU 4172 360 600 243
NNU 4176 380 620 243
NNU 4180 400 650 250
NNU 4184 420 700 280
NNU 4188 440 720 280
NNU 4192 460 760 300
NNU 4196 480 790 308
NNU 41/500 500 830 325
NNU 41/530 530 870 335
NNU 41/560 560 920 355
NNU 41/600 600 980 375
NNU 41/630 630 1030 400
NNU 41/670 670 1090 412
NNU 41/710 710 1150 438
NNU 41/750 750 1220 475
NNU 41/800 800 1280 475
NU 344 220 460 88
NU 348 240 500 95
NU 352 260 540 102
NU 2304 20 52 21
NU 2305 25 62 24
NU 2306 30 72 27
NU 2307 35 80 31
NU 2308 40 90 33
NU 2309 45 100 36
NU 2310 50 110 40
NU 2311 55 120 43
NU 2312 60 130 46
NU 2313 65 140 48
NU 2314 70 150 51
NU 2315 75 160 55
NU 2316 80 170 58
NU 2317 85 180 60
NU 2318 90 190 64
NU 2319 95 200 67
NU 2320 100 215 73
NU 2322 110 240 80
NU 2324 120 260 86
NU 2326 130 280 93
NU 2328 140 300 102
NU 2330 150 320 108
NU 2332 160 340 114
NU 406 30 90 23
NU 407 35 100 25
NU 408 40 110 27
NU 409 45 120 29
NU 410 50 130 31
NU 411 55 140 33
NU 412 60 150 35
NU 413 65 160 37
NU 414 70 180 42
NU 415 75 190 45
NU 416 80 200 48
NU 417 85 210 52
NU 418 90 225 54
NU 419 95 240 55
NU 420 100 250 58
NU 421 105 260 60
NU 422 110 280 65
NU 424 120 310 72
NU 426 130 340 78
NU 428 140 360 82
NU 430 150 380 85

Q & A

 Are you a trading company or a manufacturer?

We are not only a professional bearing manufacturer, but also a highly experienced trading company.
This enables us to supply a wide range of bearing products — both those we produce ourselves and those sourced from reliable partners — to meet diverse customer needs.

 Can I visit your factory?

Sure, you’re welcome to visit our factory anytime!
Just let us know your schedule in advance, and we’ll arrange everything for you.

Can we take some samples? Any fees?

Yes, we can provide free samples, but the shipping cost is on your side.
If you place an order after confirming the sample, we will refund the shipping fee or deduct it from the order total.

What are the loading ports?

Our primary loading port is Qingdao, but we can also ship from Shanghai, Tianjin or other ports in China as needed.

Is there quality inspection before loading?

Of course. All our products undergo strict quality inspection before packing. Any that do not meet the standards are rejected and discarded.
Customers are also welcome to arrange third-party inspections before loading.

our factory

Scroll to Top
