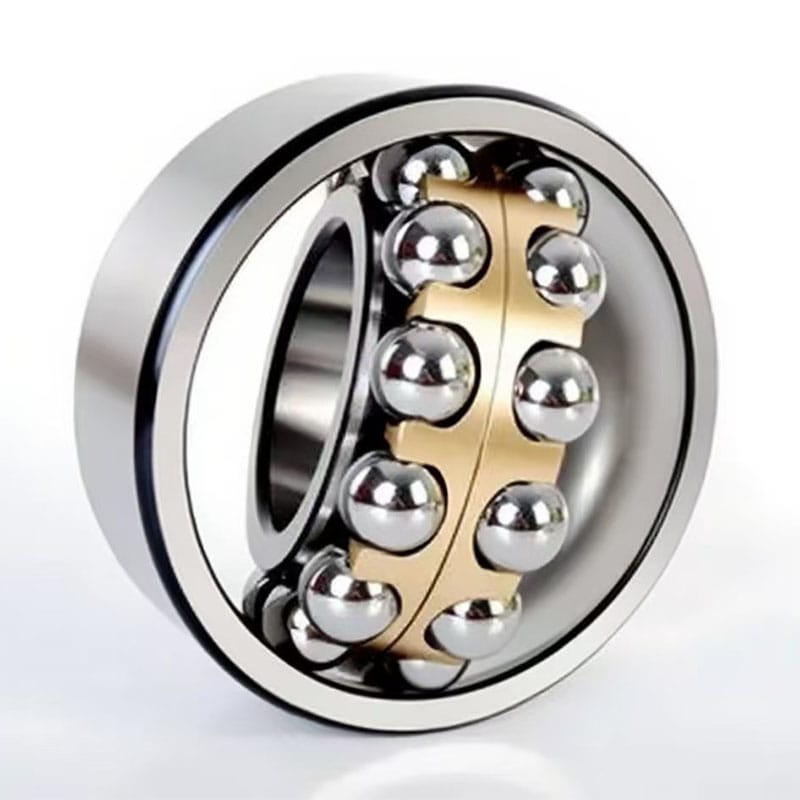

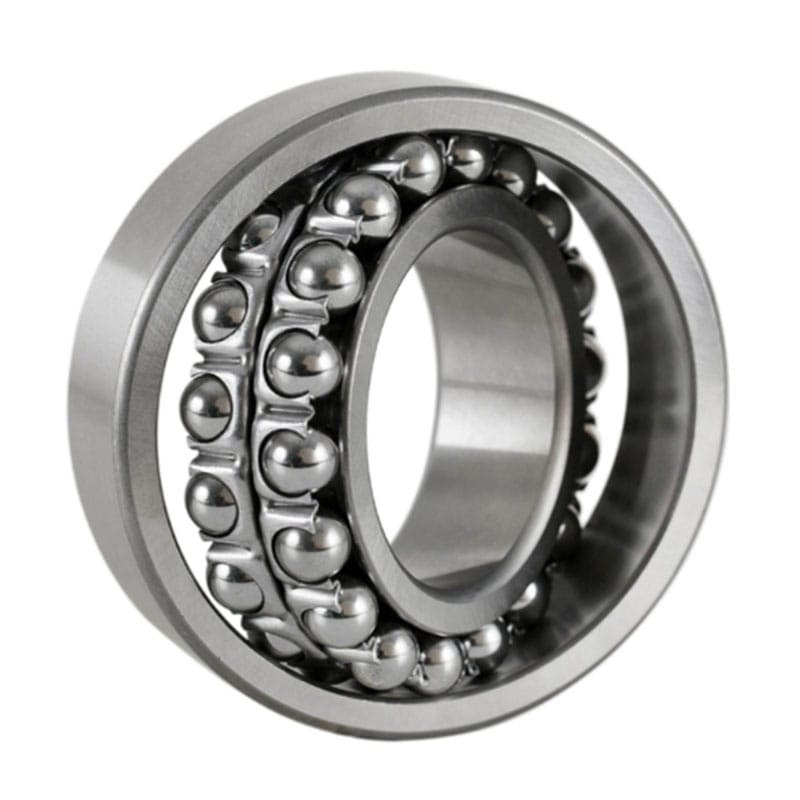

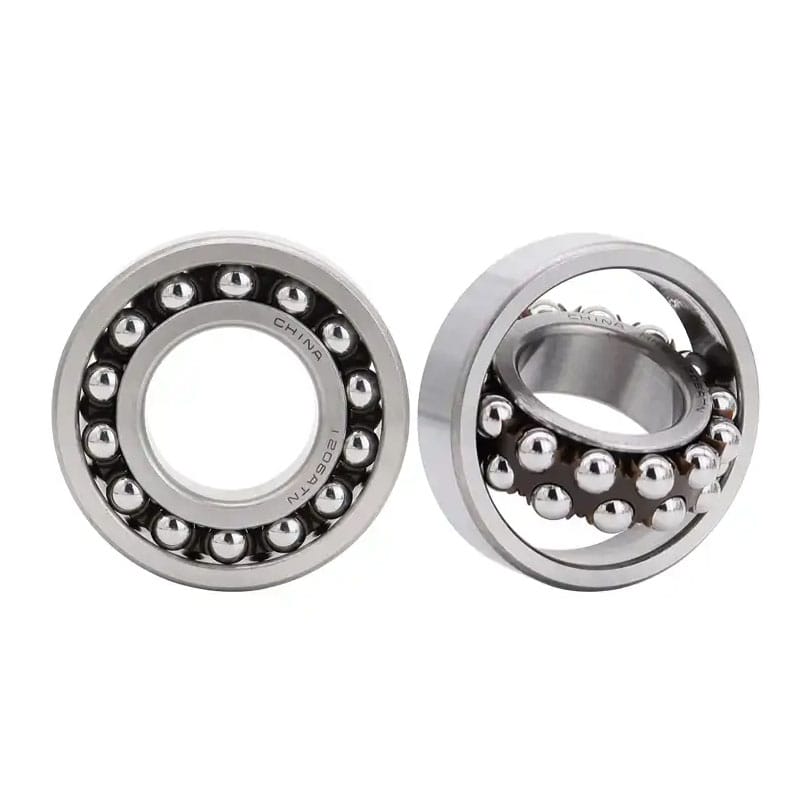

Self-aligning Ball Bearings

0-调心球轴承-3
0-调心球轴承
0-调心球轴承-2

SUMMARY

Self-aligning ball bearings are designed to accommodate misalignment between the shaft and housing, making them ideal for applications where shaft deflection or installation errors are likely to occur. These bearings feature two rows of balls with a common spherical raceway in the outer ring, allowing automatic self-alignment. They operate smoothly even under misalignment and are commonly used in agricultural machinery, textile equipment, and light industrial machinery. Our bearings ensure high durability, reduced maintenance, and reliable performance.

SERIES

· Available Series: 1200 series, 1300 series, 2200 series, 2300 series

· Tapered bore options: 1200K, 1300K, 2200K, 2300K
· With adapter sleeve: UK series

……Many other bearing models and series are not listed here. If you have any specific requirements or questions, feel free to contact us.

CONTACT US
Model NO. Dimensions（mm）
d D B
1200 10 30 9
1201 12 32 10
1202 15 35 11
1203 17 40 12
1204 20 47 14
1205 25 52 15
1206 30 62 16
1207 35 72 17
1208 40 80 18
1209 45 85 19
1210 50 90 20
1211 55 100 21
1212 60 110 22
1213 65 120 23
1214 70 125 24
1215 75 130 25
1216 80 140 26
1217 85 150 28
1218 90 160 30
1219 95 170 32
1220 100 180 34
1221 105 190 36
1222 110 200 38
1224 120 215 42
1226 130 230 46
1228 140 250 50
Model NO. Dimensions（mm）
d D B
1300 10 35 11
1301 12 37 12
1302 15 42 13
1303 17 47 14
1304 20 52 15
1305 25 62 17
1306 30 72 19
1307 35 80 21
1308 40 90 23
1309 45 100 25
1310 50 110 27
1311 55 120 29
1312 60 130 31
1313 65 140 33
1314 70 150 35
1315 75 160 37
1316 80 170 39
1317 85 180 41
1318 90 190 43
1319 95 200 45
1320 100 215 47
1321 105 225 49
1322 110 240 50
Model NO. Dimensions（mm）
d D B
2200 10 30 14
2201 12 32 14
2202 15 35 14
2203 17 40 16
2204 20 47 18
2205 25 52 18
2206 30 62 20
2207 35 72 23
2208 40 80 23
2209 45 85 23
2210 50 90 23
2211 55 100 25
2212 60 110 28
2213 65 120 31
2214 70 125 31
2215 75 130 31
2216 80 140 33
2217 85 150 36
2218 90 160 40
2219 95 170 43
2220 100 180 46
2221 105 190 50
2222 110 200 53
Model NO. Dimensions（mm）
d D B
2300 10 35 17
2301 12 37 17
2302 15 42 17
2303 17 47 19
2304 20 52 21
2305 25 62 24
2306 30 72 27
2307 35 80 31
2308 40 90 33
2309 45 100 36
2310 50 110 40
2311 55 120 43
2312 60 130 46
2313 65 140 48
2314 70 150 51
2315 75 160 55
2316 80 170 58
2317 85 180 60
2318 90 190 64
2319 95 200 67
2320 100 215 73
2321 105 225 77
2322 110 240 80

Q & A

 Are you a trading company or a manufacturer?

We are not only a professional bearing manufacturer, but also a highly experienced trading company.
This enables us to supply a wide range of bearing products — both those we produce ourselves and those sourced from reliable partners — to meet diverse customer needs.

 Can I visit your factory?

Sure, you’re welcome to visit our factory anytime!
Just let us know your schedule in advance, and we’ll arrange everything for you.

Can we take some samples? Any fees?

Yes, we can provide free samples, but the shipping cost is on your side.
If you place an order after confirming the sample, we will refund the shipping fee or deduct it from the order total.

What are the loading ports?

Our primary loading port is Qingdao, but we can also ship from Shanghai, Tianjin or other ports in China as needed.

Is there quality inspection before loading?

Of course. All our products undergo strict quality inspection before packing. Any that do not meet the standards are rejected and discarded.
Customers are also welcome to arrange third-party inspections before loading.
